Rio-Carb

As an authorised supplier and fabricator, Darsh Civils proudly offers Rio-Carb Chromium Carbide (CrC) plates.

Our expertise enables us to deliver precise, cut-to-size solutions tailored for liners and chutes, ensuring optimal performance and durability.

Our CrC plates are engineered for a variety of demanding applications, including:

Mining Operations
Enhance the longevity and efficiency of equipment used in harsh mining environments.

Aggregate Handling
Ensures smooth operations by using CrC plates in conveyors and transfer chutes.

Power Generation
Safeguard critical equipment in power plants from abrasion and erosion.

Cement Production
Protect machinery from wear and tear in cement plants, significantly reducing maintenance downtime.

Steel Manufacturing
Improve the durability of components in steel mills, minimising operational disruptions.

Long-Life Wear Plates Using R-C700 and MAXCS™

The Essential Details

Perfect for Sliding Abrasion
Suitable for chutes, bins, cyclones, and pumps.

Cost-Effective
Reduces downtime expenses significantly.

Versatile Fabrication
Can be rolled, studded, holed, and customised as needed.

Established Reputation
A well-respected South African company with BEE status and 35 years of experience.

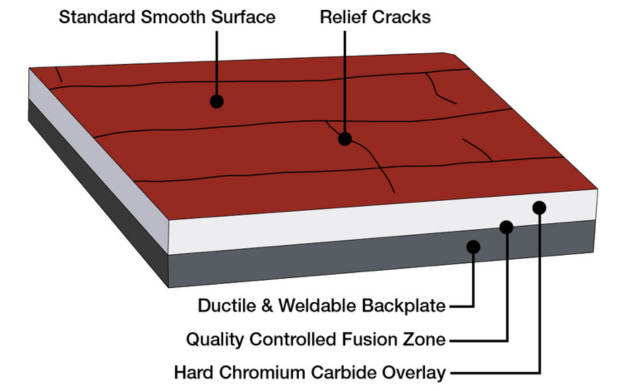

Rio-Carb Standard Smooth Surface Diagram
Standard Smooth Surface

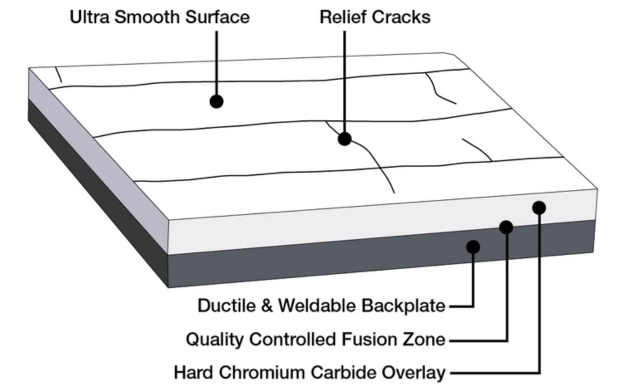

Rio-Carb ULTRASMOOTH Surface Diagram
ULTRASMOOTH Surface

MAXCS™ is a Distinctive Element of Rio-Carb's Successful Formula.

Chromium Carbide alloys have impressive features:

  • They are affordable and extremely hard, with a hardness of 1800 V.P.N.
  • These alloys can withstand heat up to 500°C.
  • Applied by weld cladding, they reach a hardness of 56-58 Rc.
  • Controlling the cooling rate after weld cladding affects CrC crystal growth.
  • This leads to vertical dendrites, which are upward-oriented crystal columns.
  • CrC liners contain 24-25% Chromium, which is 12 to 15 times more than the Chromium in “400” and “500” Q+T martensitic steel.
    A navy and grey table displaying varying comparisons of Rio-Carbs MAXCS coating.

    Properties

    Hardness
    58Rc (Outlasts normal ‘400’ and ‘500’ materials by 8-12 times)

    Coefficient of Friction
    µ0.195Rc (CrC on Mild Steel

    Wear Rate
    17.3mm³ (ASTM G-65) (‘400’ is 162.3mm³)

    Chemistry
    (CrC)Nominally 24% Chromium: 4% Carbon plus Manganese, Silicon and other elements up to 4%

    Backing Plate
    350WA Mild Steel
    Contact Us

    Choose Darsh Civils for Reliable Wear Solutions
    Choose Darsh Civils for reliable, high-performance wear solutions with our top-quality Rio-Carb Chromium Carbide plates. Our commitment to excellence ensures that your equipment is protected, efficient, and long-lasting.
